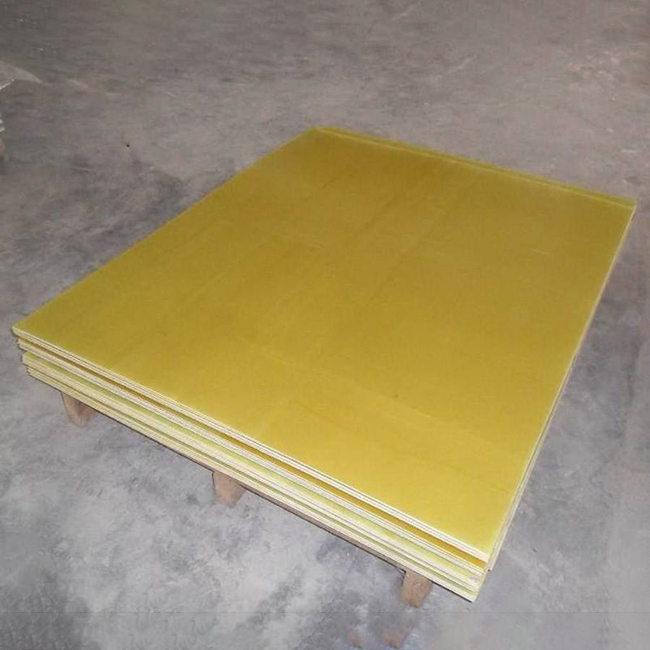

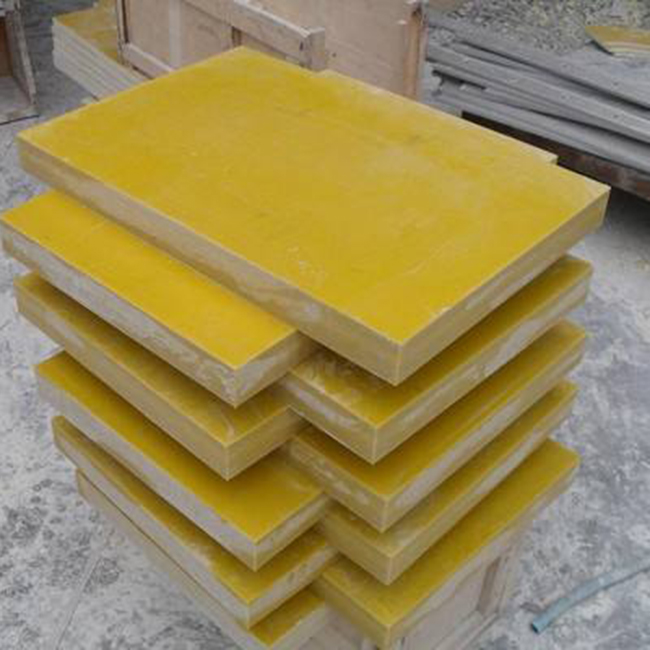

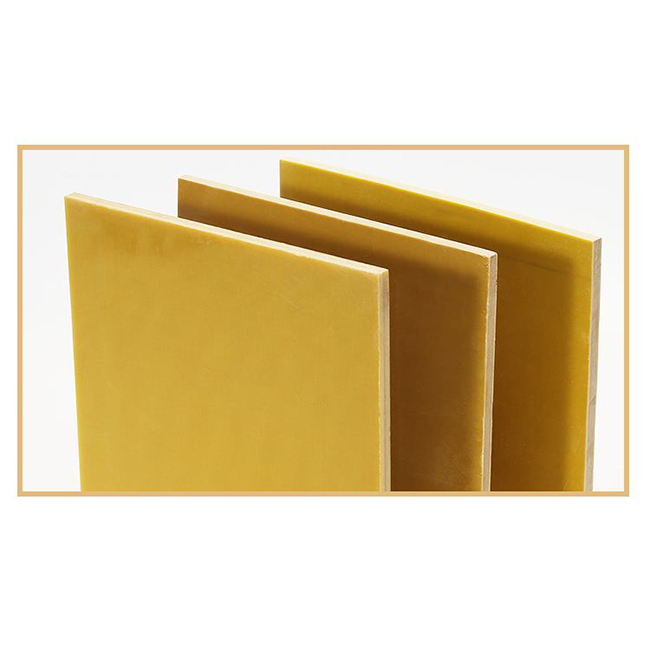

3240 Inosimbisa Girazi EPOXY LAMINATE

Tsananguro pfupi:

EPOXEX Board yechigadzirwa ichi: Girazi Fibhi jira rakasungwa neepoxy resin uye rakagadzirwa nekudziya nekumanikidza. Iyo modhi ndeye 3240 Izvo zvakakodzera kukwirira - Insulation Chekumisika zvikamu zvemachina, zvishandiso zvemagetsi uye zvemagetsi, zvine michina yakakwirira uye dielectric zvivakwa, zvakanaka kupisa uye unyoro. Kupisa kupikisa kirasi e (125 degrees).

Kugara Kwakakomberedza: 0.5 ~ 100mm
Kukura Kwakajairika: 1020 × 2040mm
Iyo inopisa uye yakaremara pakupisa kwakanyanya kwe180 ℃, kazhinji haina kupisa neimwe simbi, iyo inogona kukonzera kusvibisa kwesimbi yesimbi

Tumira email kwatiri

Chigadzirwa Chinhu

Zvigadzirwa tags

Zvishandiso Zvekushandisa

1. Yakasiyana-siyana mafomu.
2. Nyore kuporesa.

3. Kunamatira kwakasimba.
4. Dzakasiyana siyana.

Zvigadzirwa zvechigadzirwa

AIHWA.	Zvivakwa	Unit	Yakakosha Kukosha
1	Simba rinosindimara perpendicular kuti rimiswes A: Pasizvakajairikamamiriro E - 1/150: pasi pe150±5℃	MPA	≥ 340
2	Notch kukanganisa simba kuenzanisira(charpy)	KJ / M2	≥ 33
3	Insulation kuramba mushure mekunyudzwa mumvura (D - 240/23)	Ω	≥5.0x108
4	Difectric Simba Perpendicular kune Lamination(mumafuta 90 ± 2 ℃)1.0mm mubvu	MV / M	≥ 14.2.
5	Kuputsa Voltage pgalerel kuneLamination (mumafuta 90 ± 2 ℃)	kV	≥ 35
6	Kubvumidza (48 - 62Hz)	-	≤ 5.5
7	Mvumo (1mhz)	-	≤ 5.5
8	Dissipation Factor (48 - 62Hz)		≤0.04
9	Fishipation fekitori (1mhz)		≤0.04
10	Kubata kwemvuraD24 / 23, 1.6mm mubvu	mg	≤ 19
11	Density	g / cm3	1.70 - 1.90
12	Kufa	Kirasi	-
13	Ruvara		Zvakasikwa
